1. It can clearly and truly show your car’s driving condition, you can see any part of your car’s position, make your driving easy and safe1.

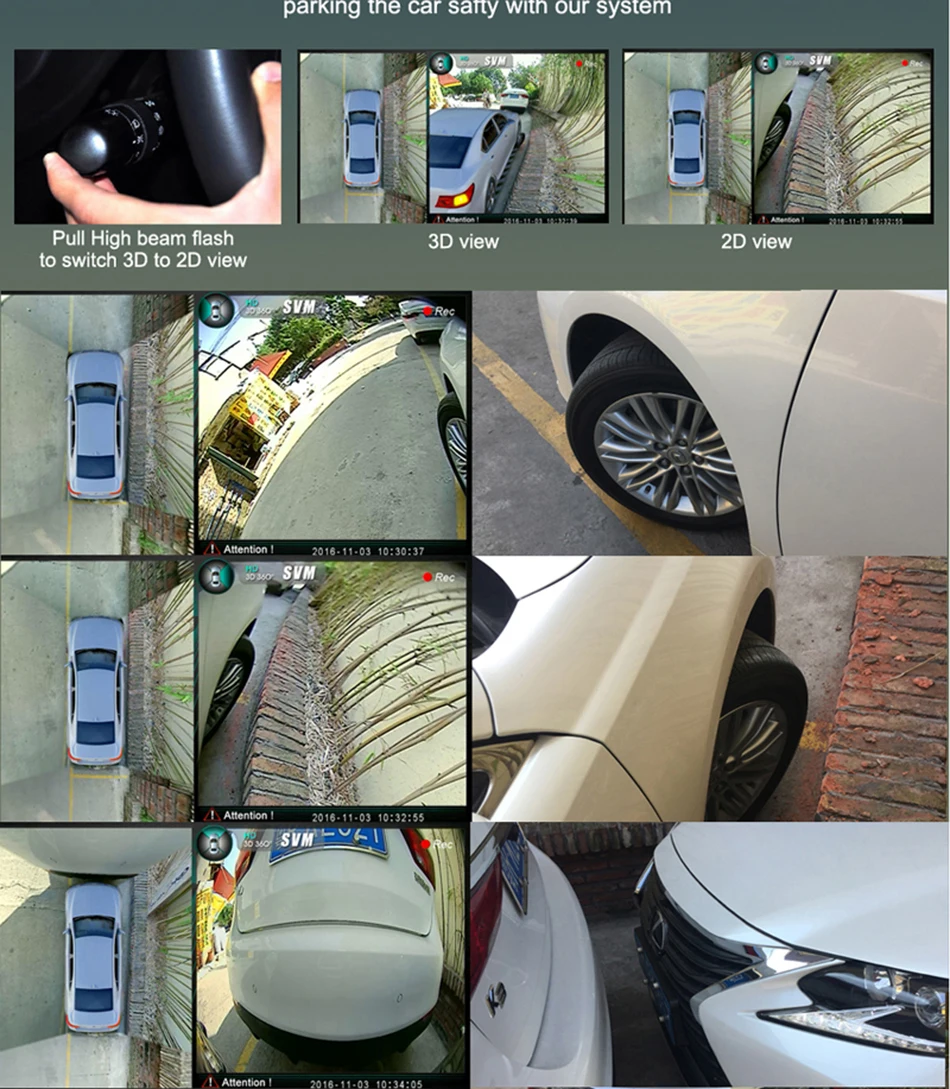

2. You can choose a different angle to view your car’s surroundings, and it automatically switches the view when you turn and reverse.
3. When you drive, it can record four cameras for HD 1920X1080 video ,In the parking lot, when the car encounters vibrations, it will start the camera to record the video.

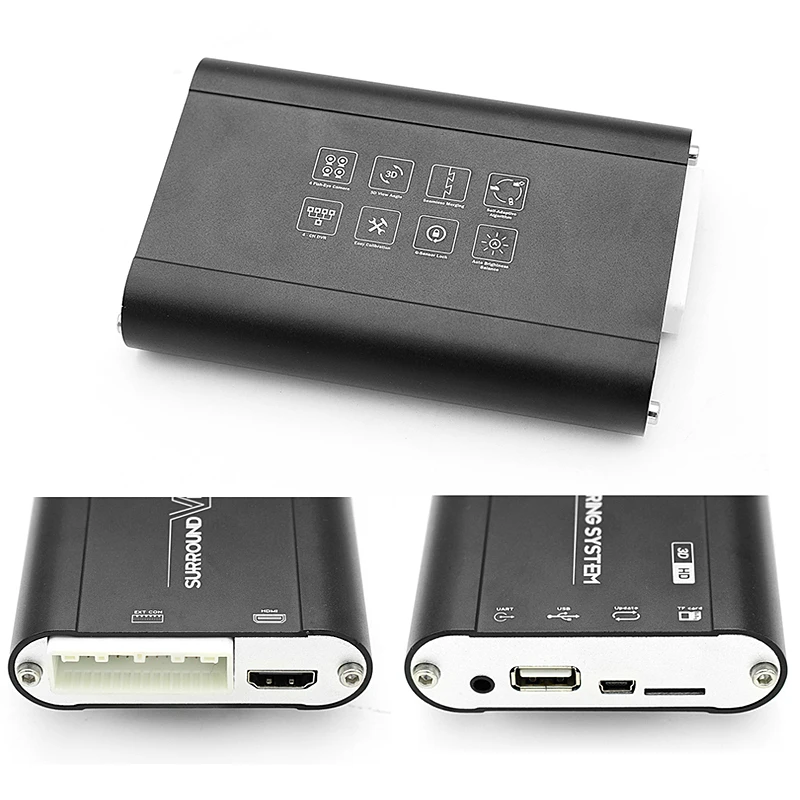

4. The product does not include the display, it has an connector, you can connect your DVD, navigation, monitor, It has AV OUT, VGA.HIMD interface.
5. The system has 5 car models to choose from, which can simulate most cars.
6. Products include English UI menu and English manual.
7. 2D/3D split screen and full screen 3D Can be set.
8. The MCCD camera. Support Low-light Level Night Vision . Angle of 170 degrees.
3D & 360° Seamless Merging
360° Blind Spots Coverage
Dynamic & Intelligent View Angle Switching
Flexible Omni-directional Monitoring
Exclusive Fish-eye Distortion Correction
Guided Camera Calibration
A. Driving Video Recording
B. 24 Hour Parking Monitoring
C. G-sensor Triggered Recording
D. Visual Radar Extension
Video Recording Functions:
1. Long press “Mode” button to switch to recording system menu.
2. Press the “OK” button to stop current recording.
3. Using “Up/Down” button to navigate between recorded files as per date and timeline.
4. Press “OK” button again if the current recording file is just the right one you want to playback, and you can enlarge any of the 4 cameras to full screen mode by pressing left /right/up/down Button.

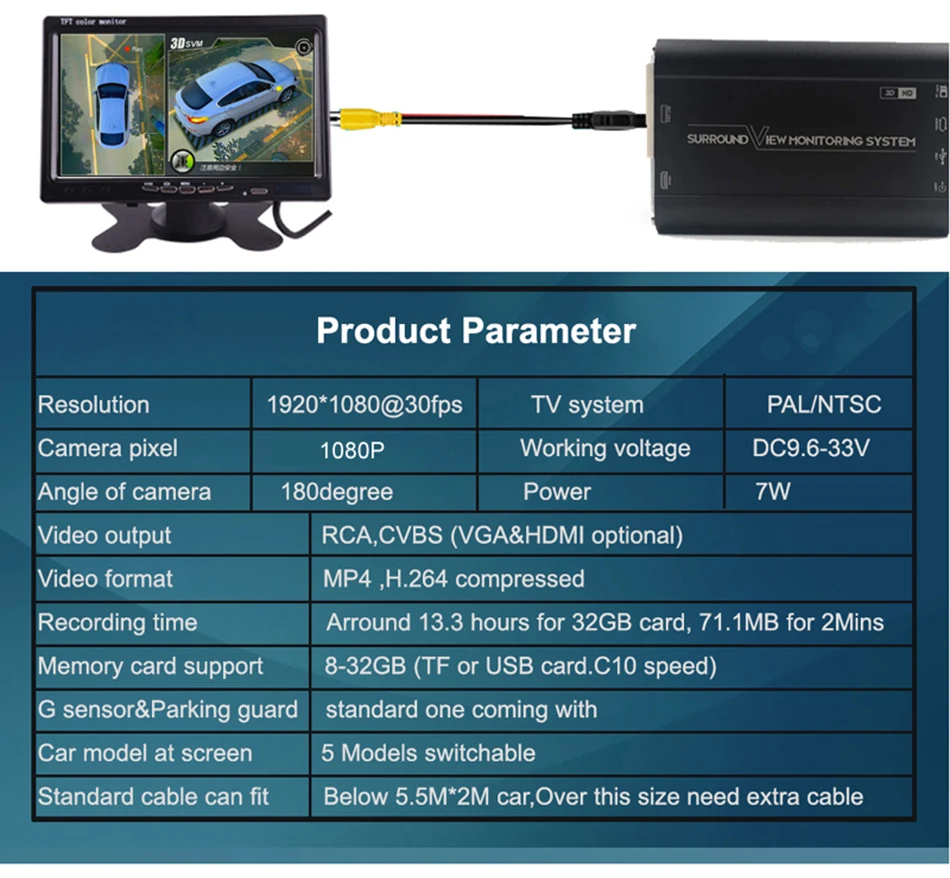

Operation Interface: Graphical menu operation interface(OSD menu) for IR remote control
Video Input: 4-ch video input
Video Output: Single channel composite video output
Display Mode: Single frame/three frame/four frame display and 3D Image .
Video Standard: NTSC/PAL
Video Compression: H.264 Main profile
Recording Mode: Automatical recording/detect recording/manual recording
Recording Channel: 4 channels (1-4 channels optional)
Records Playback: Available
Data Storage: Support 4G~32GB SD card
Software Upgrade: Support SD upgrade
Working Voltage: 12V DC
Working Current: 400mA
Working Temperature: -20—80°C
The Install Video: https://youtu.be/TqfyJKL1cwU
